FULLY POWERED TO FORGE AHEAD

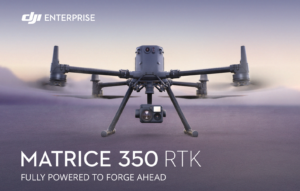

An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.
SPECIFICATION
Aircraft
| Dimensions (unfolded, without propellers) | : 810×670×430 mm (L×W×H) |
| Dimensions (folded, with propellers) | : 430×420×430 mm (L×W×H) |
| Diagonal Wheelbase | : 895 mm |
| Weight (with single downward gimbal) | : Without batteries: Approx. 3.77 kg With two TB65 batteries: Approx. 6.47 kg |
| Single Gimbal Damper’s Max Payload | : 960 g |
| Max Takeoff Weight | : 9.2 kg |
| Operating Frequency | : 2.4000-2.4835 GHz 5.150-5.250 GHz (CE: 5.170-5.250 GHz) 5.725-5.850 GHz In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information. |
| Transmitter Power (EIRP) | : 2.4000-2.4835 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.150-5.250 GHz (CE: 5.170-5.250 GHz): < 23 dBm (CE) 5.725-5.850 GHz: < 33 dBm (FCC/SRRC) < 14 dBm (CE) |
| Hovering Accuracy (with moderate or no wind) | : Vertical: ±0.1 m (with vision positioning) ±0.5 m (with GNSS positioning) ±0.1 m (with RTK positioning) Horizontal: ±0.3 m (with vision positioning) ±1.5 m (with GNSS positioning) ±0.1 m (with RTK positioning) |
| RTK Positioning Accuracy (RTK FIX) | : 1 cm + 1 ppm (horizontal) 1.5 cm + 1 ppm (vertical) |
| Max Angular Velocity | : Pitch: 300°/s Yaw: 100°/s |
| Max Pitch Angle | : 30° When in N mode and with the forward vision system enabled: 25°. |
| Max Ascent Speed | : 6 m/s |
| Max Descent Speed (vertical) | : 5 m/s |
| Max Tilted Descent Speed | : 7 m/s |
| Max Horizontal Speed | : 23 m/s |
| Max Flight Altitude | : 5000 m When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg. 7000 m When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg. |
| Max Wind Speed Resistance | : 12 m/s |
| Max Flight Time | : 55 minutes Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app |
| Supported DJI Gimbals | : Zenmuse H30, Zenmuse H30T, Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse L2, Zenmuse L1, and Zenmuse P1 |
| Third-Party Payload | : Supports only certified payloads developed based on DJI Payload SDK. |
| Supported Gimbal Configurations | : Single downward gimbal Single upward gimbal Dual downward gimbals Single downward gimbal + single upward gimbal Dual downward gimbals + single upward gimbal |
| Ingress Protection Rating | : IP55 The IP rating is not permanently effective and may decrease due to product wear and tear. |
| Global Navigation Satellite System | : GPS + GLONASS + BeiDou + Galileo |
| Operating Temperature | : -20° to 50° C (-4° to 122° F) |
| Class | : C3 (EU) |
| Others | : Support LED torch on top, FM |
Remote Controller
| Screen | : 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits |
| Weight | : Approx. 1.25 kg (without WB37 battery) Approx. 1.42 kg (with WB37 battery) |
| Global Navigation Satellite System | : GPS + Galileo + BeiDou |
| Built-in Battery | : Type: Li-ion (6500 [email protected] V) Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V). Charging Time: 2 hours Chemical System: LiNiCoAlO2 |
| External Battery (WB37 Intelligent Battery) | : Capacity: 4920 mAh Voltage: 7.6 V Type: Li-ion Energy: 37.39 Wh Chemical System: LiCoO2 |
| Ingress Protection Rating | : IP54 |
| Operating Time | : Built-in Battery: approx. 3.3 hours Built-in Battery + External Battery: approx. 6 hours |
| Operating Temperature | : -20° to 50° C (-4° to 122° F) |
| Operating Frequency | : 2.4000-2.4835 GHz 5.725-5.850 GHz |
| Transmitter Power (EIRP) | : 2.4000-2.4835 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: < 33 dBm (FCC) < 14 dBm (CE) < 23 dBm (SRRC) |
| Wi-Fi Protocol | : Wi-Fi 6 |
| Wi-Fi Operating Frequency | : 2.4000-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz |
| Bluetooth Protocol | : Bluetooth 5.1 |
| Bluetooth Operating Frequency | : 2.4000-2.4835 GHz |
Video Transmission
| Video Transmission System | : DJI O3 Enterprise Transmission |
| Antenna | : 4 video transmission antennas, 2T4R |
| Max Transmission Distance (unobstructed, free of interference) | : 20 km (FCC) 8 km (CE/SRRC/MIC) |
| Max Transmission Distance (with interference) | : Low Interference and Obstructed by Buildings: approx. 0-0.5 km Low Interference and Obstructed by Trees: approx. 0.5-3 km Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app. |
